Q3XG-1088R
Q3XG-1088R
必要參數設置

Q3XG-1088R 寬帶混合耦合器

幀率：960-1215兆赫瓦數：175瓦放消耗的資金：0.12 dB要進行隔離度：26聲音頻率駐波比：1.15定貨過渡期：6-8周

品牌：Electro-Photonics

車輛寶貝詳情簡介

Features

  • 960 – 1215 MHz
  • Low Loss
  • High Isolation
  • Tight Amplitude Balance
  • 90 deg Quadrature
  • Surface Mountable
  • CTE Matched
  • ARNS Band
  • Tape and Reel Option

Specifications

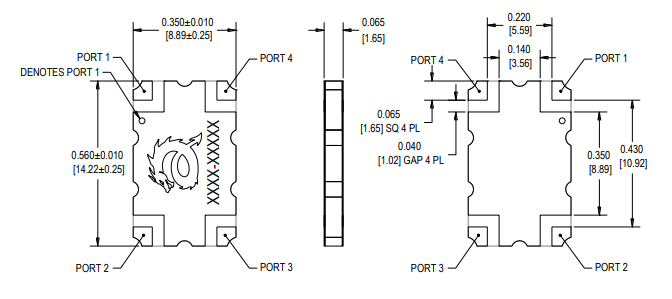

  • Size: .560 x .350 inches
  • Frequency: 960-1215 MHz
  • Power: 175 W
  • Insertion Loss: .12 dB
  • Amplitude Balance: ± .2
  • Isolation: 26 dB
  • VSWR: 1.15
  • Phase Balance: ± 2
