?Q30HE-900R定向耦合器

最重要參數設置

Q30HE-900R定向耦合器

幾率：0.7 – 1.2 GHz解耦：30.4分貝±一分貝解耦平緩度：±0.3dB位置性：18聲音頻率駐波比：1.10:1添加衰減：0.1dB輸出：355瓦開展板722-0006-05-E01訂購期限：6-8周

品牌：Electro-Photonics

廠品信息解釋

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

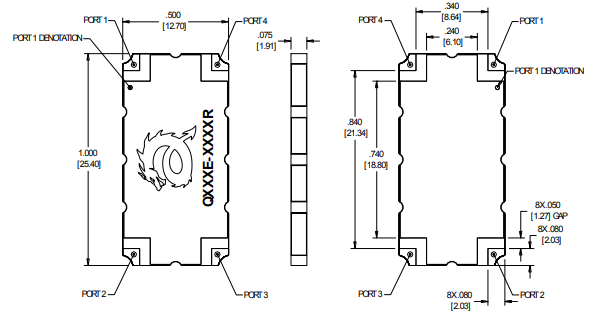

Size: 1.00 x 0.50 inches
Frequency: 0.7 – 1.2 GHz
Coupling: 30.5 dB ± 1 dB
Coupling Flatness: ± 0.3 dB
Directivity: 18 dB
VSWR: 1.10:1
Insertion Loss: 0.1 dB
Power: 355 W
Evaluation board 722-0006-05-E01
