?Q20HK-1900R定向耦合器
?Q20HK-1900R定向耦合器
注重參數設置

Q20HK-1900R定向耦合器

平率：1.8 – 2 GHz藕合：20噪音分貝±0.5噪音分貝目標性：20聲貝駐波比：1.3:1放入不足：0.3dB輸出功率：80瓦評估方法板722-0006-07-E01訂購周期怎么算：6-8周

品牌：Electro-Photonics

貨品商品詳情講解

1800-2000 MHz Directional Coupler

The Q20HK-1900R is a bi-directional coupler with high directivity and high power handling. Q20HK-1900R is a replacement for Soshin P/N GSC311-20M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

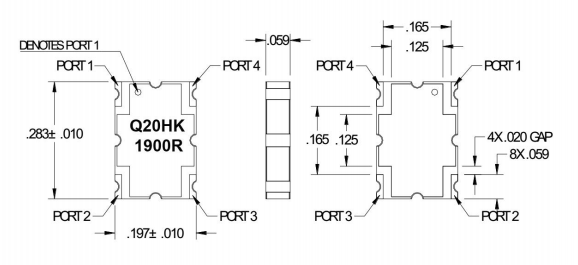

  • Size: 0.283 x 0.197 inches
  • Frequency: 1.8 – 2 GHz
  • Coupling: 20 dB ± 0.5 dB
  • Directivity: 20 dB
  • VSWR: 1.3:1
  • Insertion Loss: 0.3 dB
  • Power: 80 W
  • Evaluation board 722-0006-07-E01
